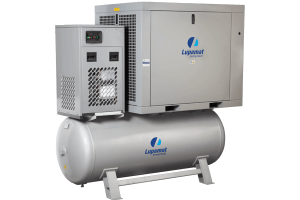

MITK Series Receiver Mounted With Dryer Integrated
MITK series offer oil injected, low speed, receiver mounted, dryer integrated, compact model products which are used in all areas of the industry. Produced with high quality materials, our products take up less space thanks to their compact models. Ideal for industrial applications where size, cost and efficiency standout (Model range 4 kw-15 kw).
General Features
► Compact design
► IE3 efficient motor
► Serviceability
► Silent Operation
► Saves space by taking up less
► Dryer integrated
Product Description
Specifications
| Model | Maximum operating pressure Bar g | Capacity FAD m3/min | Motor Kw-hp | tank volume (I) | Dryer Capacity m3/min | Air Outlet | Lenght (mm) | Height (mm) | Width (mm) | Weight (Kg) |
| LKV 4 MIT | 7 – 10 – 13 | 0.64 – 0.51 – 0.40 | 4-5.5 | 500 | 0.88 | 3-4″ | 1950 | 1625 | 800 | 500 |
| LKV 5.5 MIT | 7 – 10 – 13 | 0.87 – 0.72 – 0.59 | 5.5-7.5 | 500 | 0.88 | 3-4″ | 1950 | 1625 | 800 | 510 |
| LKV 7.5 MIT | 7 – 10 – 13 | 1.16 – 0.98 – 0.82 | 7.5-10 | 500 | 1.67-1.67-0.88 | 3-4″ | 1950 | 1625 | 800 | 540 |
| LKV 11 MIT | 7 – 10 – 13 | 1.75 – 1.50 – 1.29 | 11-15 | 500 | 2.58-1.67-1.67 | 3-4″ | 1950 | 1700 | 800 | 600 |
| LKV 15 MIT | 7 – 10 – 13 | 2.39 – 2.01 – 1.65 | 15-20 | 500 | 2.58 | 3-4″ | 1950 | 1700 | 800 | 630 |
